Prevent costly AV rework and preserve luxury finishes

Leaving low‑voltage decisions to the end forces invasive work, visible wiring, and expensive fixes that derail schedules and damage finishes. Plan early and you avoid rework while keeping the clean, seamless look luxury owners expect.

Industry guides from Cepro recommend a structured, home‑run wiring strategy as the backbone of a smart home. Run Cat6, Cat6a, and fiber back to a single central hub so upgrades, troubleshooting, and AV distribution stay simple.

Coordinate pre‑wire plans with electricians, HVAC, cabinetry, and builders so conduits and equipment spaces don't conflict. Confirm permit and inspection requirements early with local building departments such as the Los Angeles Department of Building and Safety to avoid code issues or rework. This article gives a practical roadmap for builders and architects. You'll get clear guidance on structured wiring, equipment room and power strategy, and room‑level wiring for theaters, cameras, motorized shades, and concealed displays.

Closeup hybrid diagram/3D model of a construction coordination scene: an overlayed floorplan with color‑coded conduit routes weaving around cabinetry cavities, HVAC ducts, and electrical chases, showing how prewire planning avoids conflicts and preserves finished surfaces.

Design a central, home‑run backbone that’s easy to upgrade

Want wiring you never have to reopen for upgrades or hidden gear? We recommend a home‑run, star topology with every low‑voltage run returning to one central wiring closet.

A central distribution panel keeps troubleshooting fast and upgrades painless. Experts at Cepro advise structured wiring as the backbone of modern smart homes.

Cable types and where to specify them

Specify Cat6 as the minimum and Cat6a where you need future bandwidth or heavy PoE. Cat6a gives more headroom for AV over IP and higher PoE while staying cost effective.

Plan single‑mode fiber (OS2) for backbone runs and FTTH entry points to maximize long‑distance bandwidth. For typical TV and internet drops use RG‑6, and choose RG‑11 for very long coax runs.

Belden's guidance on AV networking supports Cat6a for high‑bandwidth AV over IP. Single‑mode fiber recommendations come from long‑distance networking standards.

Patch panels, spare ports, and labeling best practices

Provision patch panels with about 20 to 30 percent extra ports so you have room to grow. Organized terminations cut service time and keep the rack looking professional.

Label both ends of every cable using a consistent scheme to speed troubleshooting. Follow an industry standard labeling method so new contractors can read your system quickly.

For wire management and panel layout, see practical tips from patch panel wire management guides that show tidy routing and port planning.

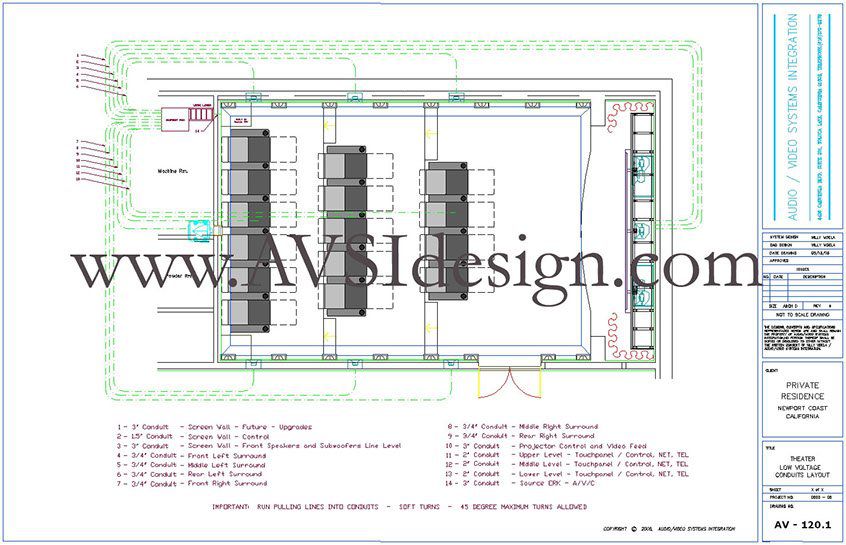

Pull strings, spare conduits, and raceway sizing to avoid future cuts

Install pull strings in every conduit during framing so new cables can be pulled later without opening walls. Tie off both ends and leave serviceable slack in boxes.

Over‑specify conduits for main runs and use 2 to 3 inch raceways where practical. Larger or multiple conduits let you add runs later and avoid costly drywall work.

Also keep low‑voltage conduits separated from high‑voltage runs and seal conduit ends to prevent air transfer. Practical pre‑wire choices like these save time and money down the road.

The key difference is planning now for tomorrow's tech. A well‑specified backbone with quality cable, spare capacity, and clear labeling keeps luxury finishes intact and systems performing for years.

Interior view of a central wiring closet with a professional patch panel and rack: dozens of neatly dressed cables (blue Cat6, gray Cat6a, orange fiber) terminating into labeled ports, several empty ports spare for growth, and tidy cable management rings illustrating a home‑run, star topology built for easy upgrades.

Design the Equipment Room for Cooling, Power, and Easy Service

Worried your AV closet will become a heat, hum, or wiring nightmare after the house is finished? Plan the equipment room now so service is simple and expensive rework stays off the schedule.

Pick a location that keeps backbone runs short and stays accessible during service calls. Allow front and rear clearance so racks can be pulled out and serviced without removing cabinetry.

Size racks in rack units and document each device U‑height so installers know exact spacing. Put heavy gear like power amplifiers at the bottom and leave extra U space for future gear.

Cooling and airflow that protects your investment

Active rack cooling or dedicated ventilation is nonnegotiable for high‑power systems. Maintain ambient equipment temperatures between about 50 and 80 degrees to avoid premature failure.

We recommend intake and exhaust routing that creates front‑to‑rear airflow through the rack. Plan HVAC tie‑ins and service access so the closet can be maintained independently from living spaces. Ventilation strategies for home theaters

Power quality, grounding, and avoiding hum

Put home theater and high‑performance AV equipment on dedicated circuits to avoid overloads and noise. Where practical, place AV outlets on the same electrical leg to reduce hum and interference.

Implement a star, single‑point grounding scheme so grounds converge at one low‑impedance point. That approach minimizes ground‑loop hum across multiple components.

For circuit planning and best practices on dedicated lines, see this overview. Dedicated power lines for AV systems

Keep low‑voltage signal cables separated from AC power to avoid induced noise. Where separation is impractical, cross runs at 90 degrees and use shielded cable or separate conduit.

Never hide standard AC power cords inside wall cavities. Use code‑compliant recessed outlets or approved power relocation kits behind displays and TVs.

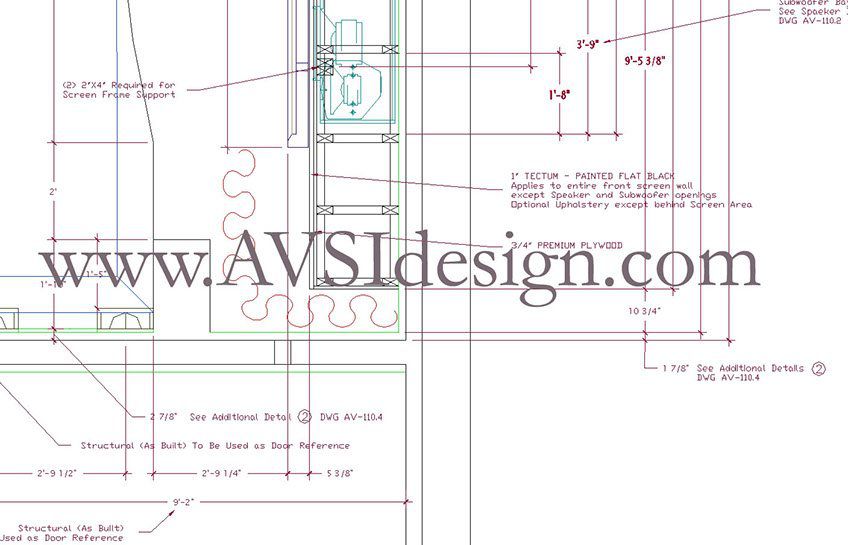

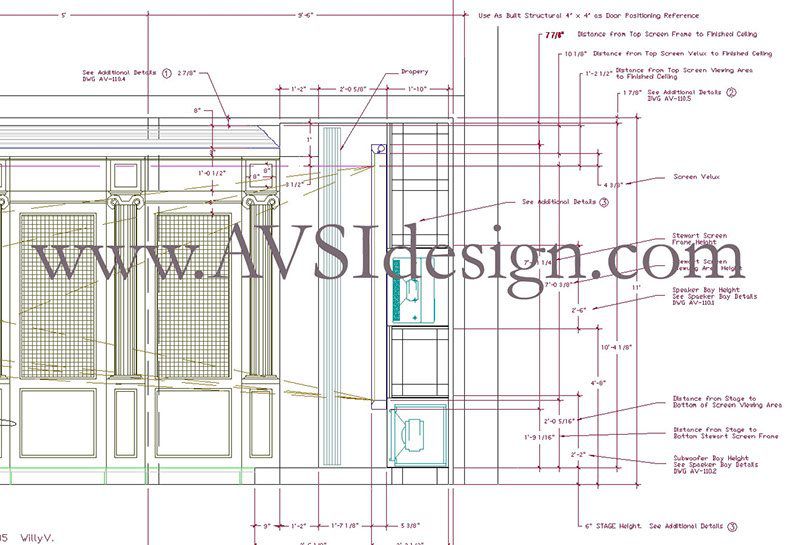

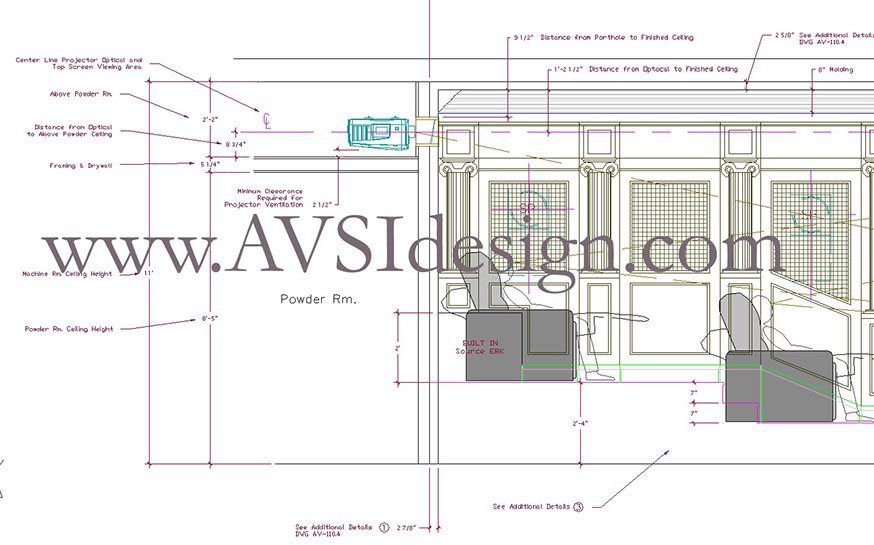

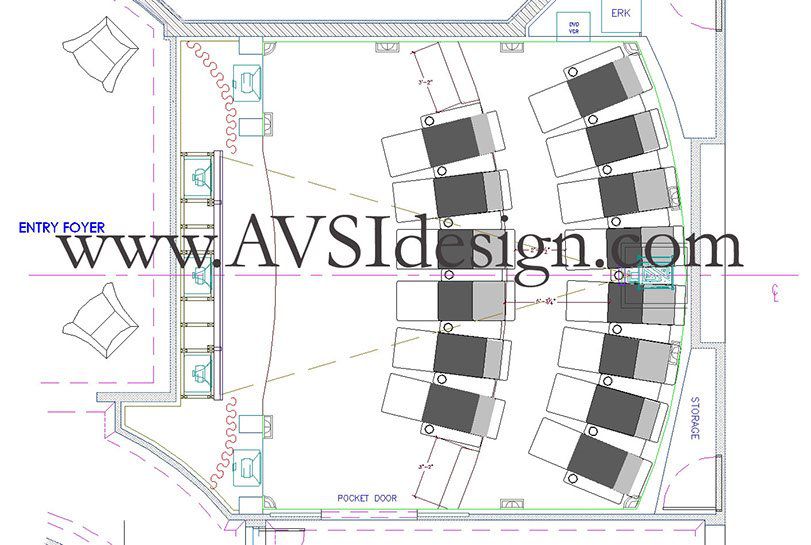

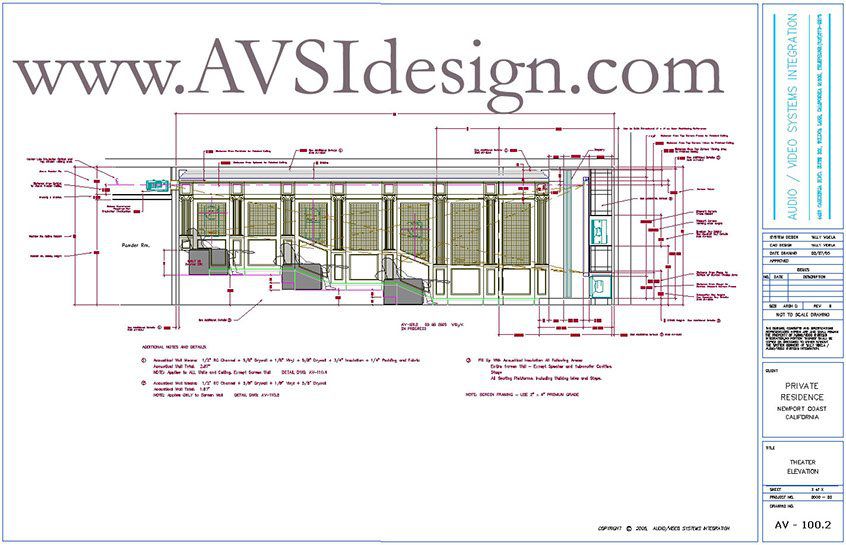

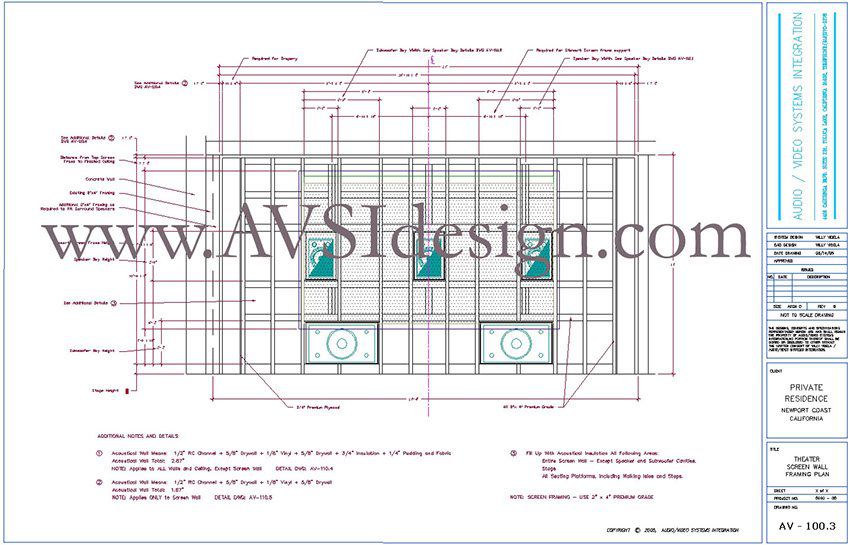

What to show on CAD drawings for coordination

Rack elevations showing each device U‑height, manufacturer and model, and reserved expansion space.
Plan view and clearances front and rear so HVAC and carpentry know required service space.
Ventilation inlet and exhaust locations, airflow direction, and any HVAC access or service panels.
Dedicated circuit locations, breaker sizes, and a note to put AV outlets on the same electrical leg.
Conduit and pull‑box sizes, pull locations, jack types, and labeling standards for every drop.
Cable‑separation notes and power relocation details so electricians and installers avoid interference and code conflicts.

Plan these items on CAD early and share them with electrical and HVAC trades so installations line up. Do that and the final system will perform reliably and look built in, not patched on.

Cross‑section of a dedicated equipment room showing a full rack with front and rear service clearance, heavy amplifiers mounted low, active ventilation ducts creating front‑to‑rear airflow, a small subpanel for dedicated circuits, and a single low‑impedance grounding bus where thick ground conductors converge—visual cues emphasizing serviceability, cooling, and clean power.

Room-level wiring and device placement that preserves finishes and performance

Want hidden speakers, flawless video, and secure cameras without opening walls later? Plan the room wiring and device locations now so technology stays invisible and performs at its best.

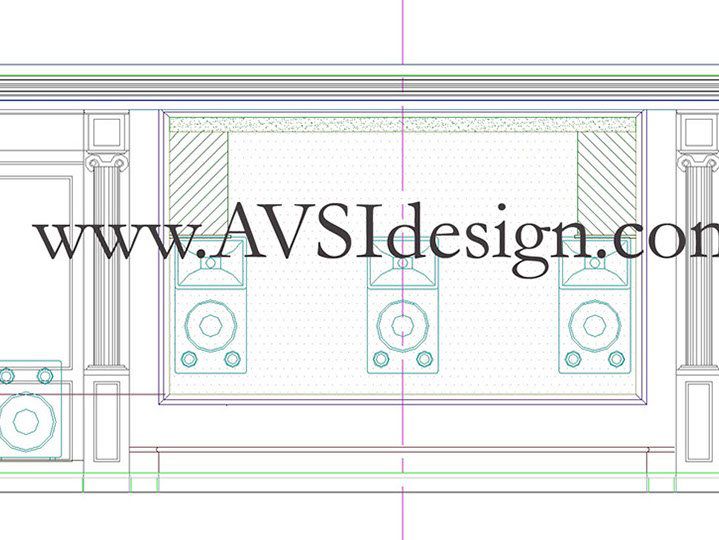

For distributed audio and dedicated theaters choose speaker wire by run length and power needs. Crutchfield guidance shows 16 AWG for runs to about 25 feet, 14 AWG for 25 to 50 feet, and 12 AWG for runs over 50 feet or low‑impedance systems.

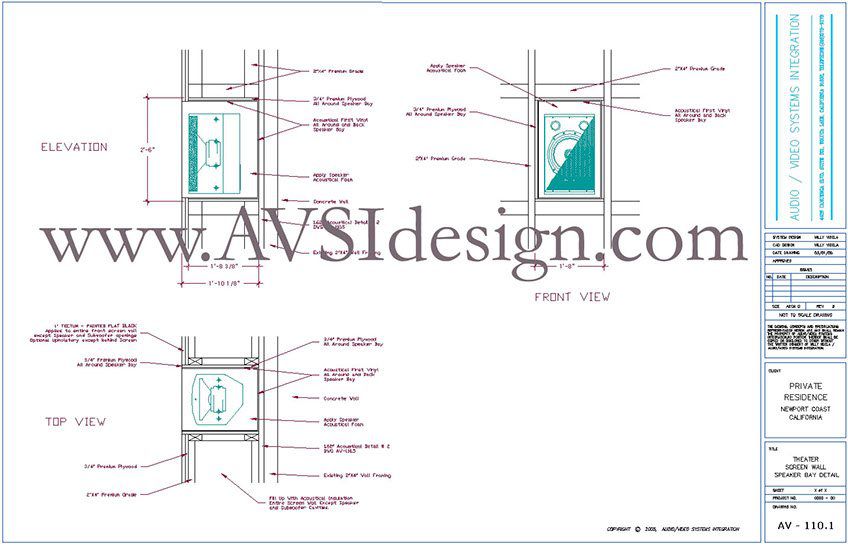

Always use UL‑rated in‑wall speaker cable (CL2 or CL3) where speakers are concealed inside walls or ceilings. That meets fire‑safety code and avoids rework when walls close up.

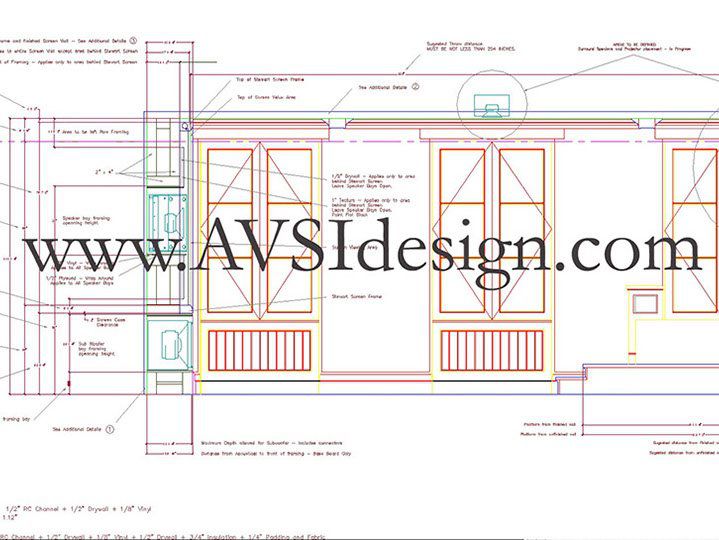

Placement, subwoofer strategy, and terminations

Speaker placement matters for imaging and bass performance. Use the "subwoofer crawl" to dial in a single subwoofer, or plan two or more subs placed symmetrically to smooth bass across seats.

Terminate speaker runs with secure connectors so future service is fast. Banana plugs or properly tightened spades work well for frequent access, while clean bare‑wire under pressure is fine for permanent installs.

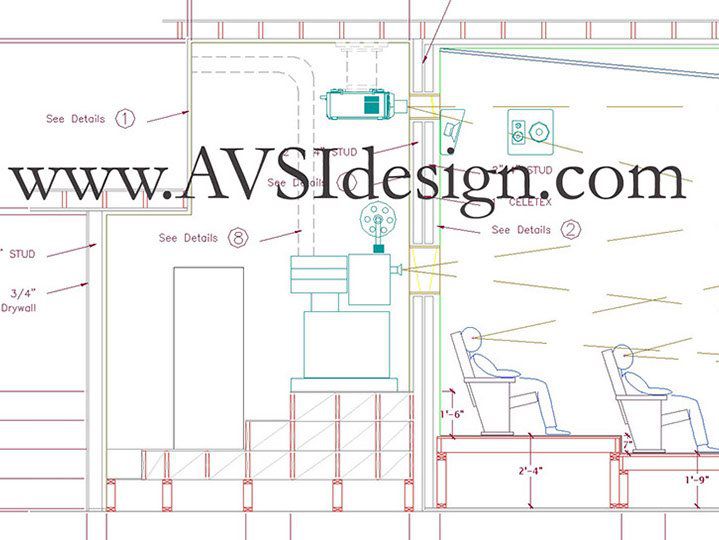

Concealed displays, projector lifts, motorized shades, and cameras

For hidden TVs and projector lifts run at least two Cat6 and two RG‑6 style drops so you have options for HDMI, HDBaseT, and local sources.

Plan control runs for IR, RS‑232, or IP control and leave generous slack for moving lifts or pop‑up mounts. Design ventilation and active cooling for concealed equipment so heat does not shorten component life.

Motorized shades typically use low‑voltage DC motors, commonly 12 or 24 volts. Plan home‑run power to a central distribution panel and run 16/2 or 18/2 stranded cable to each shade location.

Position exterior and entry cameras to overlap fields of view. Mount them about 8 to 10 feet high and angle them 15 to 30 degrees down for facial detail and tamper resistance.

Run dedicated Cat6/Cat6A to every camera for reliable PoE and future bandwidth needs.
Keep AV signal runs separated from high‑voltage wiring and cross at 90 degrees when paths must intersect.
Provide pull strings and spare conduits at each location so new cables can be added without opening drywall.
Label both ends of every cable and record termination panels on as‑built drawings during installation.

At project handoff deliver a complete package for homeowners, architects, and builders. Include as‑built wiring maps, labeled cables, device programming notes, login credentials, and a client orientation or digital handover.

Do this and you protect finishes, simplify service, and preserve the value of the home technology system for years.

Cutaway of a living room and ceiling showing concealed speakers and camera locations: in‑wall speaker runs of varied thicknesses (depicted as differently sized cables) routing to a hidden termination panel, two Cat6 and two RG‑6 drops coiled behind a recessed TV mount, and a projector lift shaft with generous slack loops to illustrate planning that preserves finishes and allows future service.

Lock in clean installs and avoid costly AV rework

Want to avoid expensive rework and visible wiring? A few planning essentials keep finishes intact, AV performance reliable, and future upgrades painless.

Build a home‑run, star backbone so every low‑voltage drop returns to a single central hub.
Specify the right cables now (Cat6/Cat6a, single‑mode fiber, RG‑6) to prevent bandwidth and PoE problems later.
Design the equipment room for cooling, dedicated power, and clear front and rear service access.
Install pull conduits and pull strings at framing so new cables can be added without opening walls.
Deliver thorough documentation at handoff, including as‑built wiring maps, labeled cables, device notes, and a digital packet for the owner.

Confirm permits and licensing early with local building departments. Include C7 low‑voltage contractor checks when relevant in Los Angeles and Santa Clarita so inspections and approvals stay on track.

If you want help folding these requirements into early design meetings and CAD deliverables, we can help. AUDIO/VIDEO SYSTEMS INTEGRATION, INC serves Los Angeles and Santa Clarita. Call our Santa Clarita office at (818) 370-9278 for AV design support and build‑ready CAD drawings.

Start planning now and you will save time, money, and headaches during construction.
